Double Deep Racking System

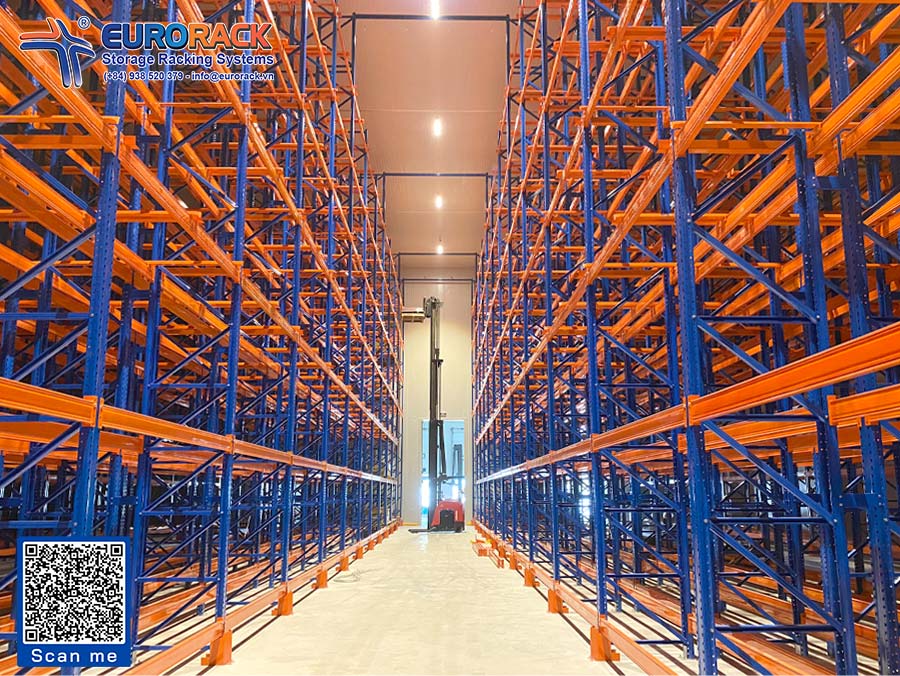

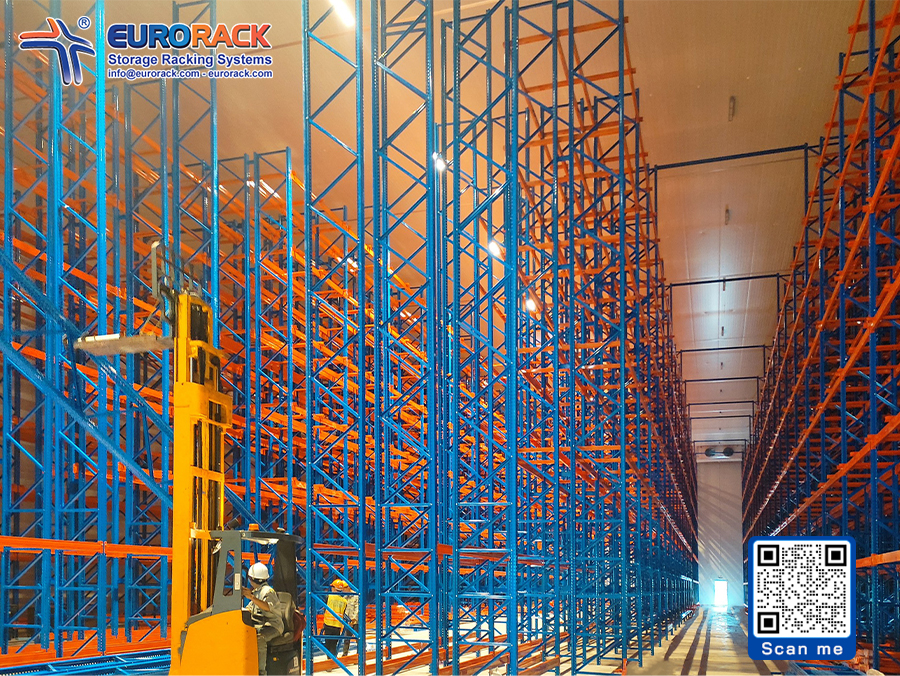

Double Deep Racking project in cold storage constructed by Eurorack

The Double Deep Pallet Racking System is a heavy-duty racking solution commonly used in the industrial sector. Designed to maximize warehouse space efficiency, Double Deep Racking can utilize over 50% of warehouse space, making it an ideal choice for high-density storage.

This racking system is suitable for various storage applications, including food products, chemicals, pharmaceuticals, as well as cold storage and logistics warehouses.

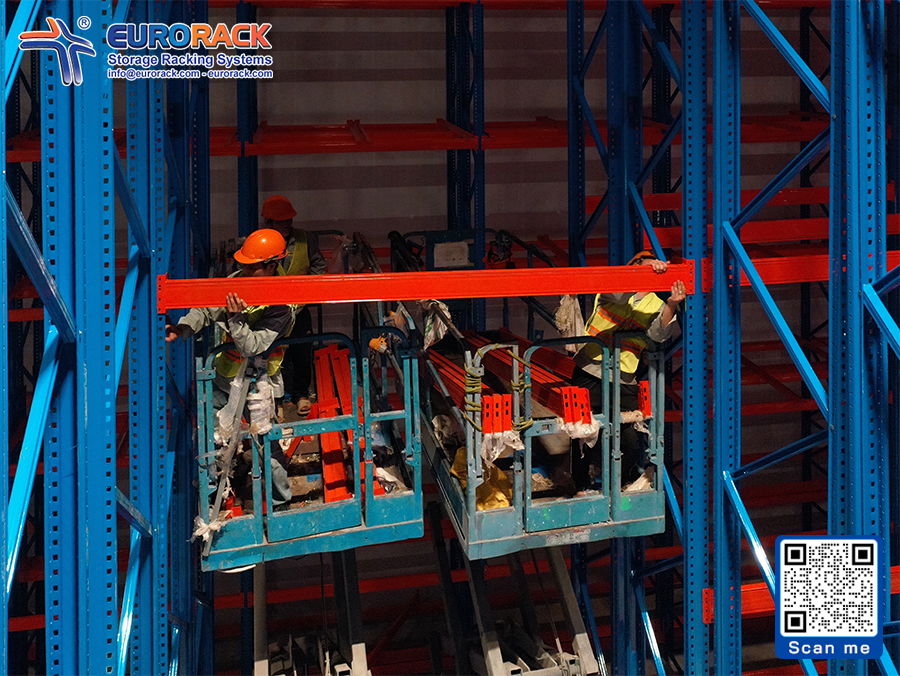

Eurorack specializes in manufacturing and installing Double Deep racks

Double Deep Pallet Racking – A High-Density Storage Solution

The Double Deep Pallet Racking System is one of the most popular pallet storage solutions today. With its outstanding features, Double Deep Racking is ideal for large-scale warehouses that require high storage density.

To determine whether Double Deep Racking is the optimal and most efficient storage solution for your warehouse, let’s explore the detailed insights provided by Eurorack below

• Pallet Load Capacity: 500 – 1,000 kg per pallet
• Total System Load Capacity: 4,000 – 8,000 kg per rack level
• Storage Capacity: Up to 8 pallets per level (adjustable based on storage needs)
• System Height: 8 – 12 meters (customizable to warehouse requirements)
• Pallet Accessibility Rate: 50%
• Recommended Inventory Management Method: LIFO (Last In, First Out)
• Compatible Forklifts: Specialized reach trucks with adjustable reach capabilities
• Design Standard: EN 15.512:2019 (FEM Standard)
• Beam Level Spacing: 1 – 1.2 meters (adjustable as needed)

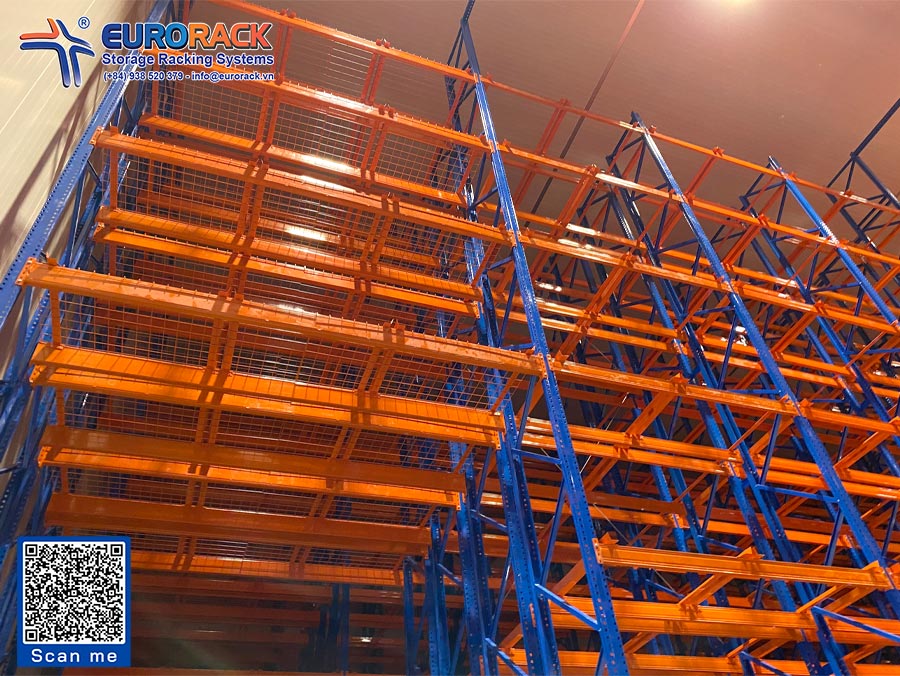

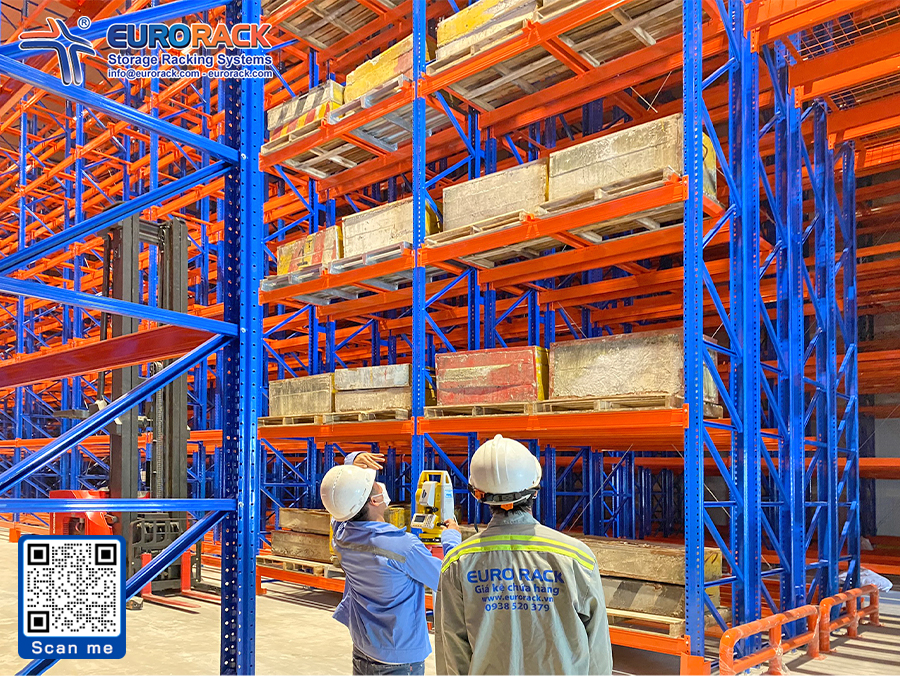

Double Deep Racking with wire mesh floors can load pallets weighing up to 6000kg/floor

The Double Deep rack is essentially made up of the following components:

• Load-Bearing Upright Frame:

Forms the structural backbone of the racking system.

Features evenly spaced perforations for connecting beams and adjusting storage levels as needed.

• Beam:

Directly supports pallets and connects to two upright frames using pre-designed hooks.
Secured with bolts and fasteners to enhance structural stability.

• Bracing:

Distributes load evenly across the entire racking system.
Typically fixed in an X or Z shape to reinforce the upright frames.

• Protective Wire Mesh (Optional):

Installed at the back or sides of the racking system to prevent goods from falling during loading and unloading.

• Speed Bumps & Protective Barriers:

Shields the racking system from forklift collisions.
Typically installed 10-20 cm away from the racks to minimize impact damage.

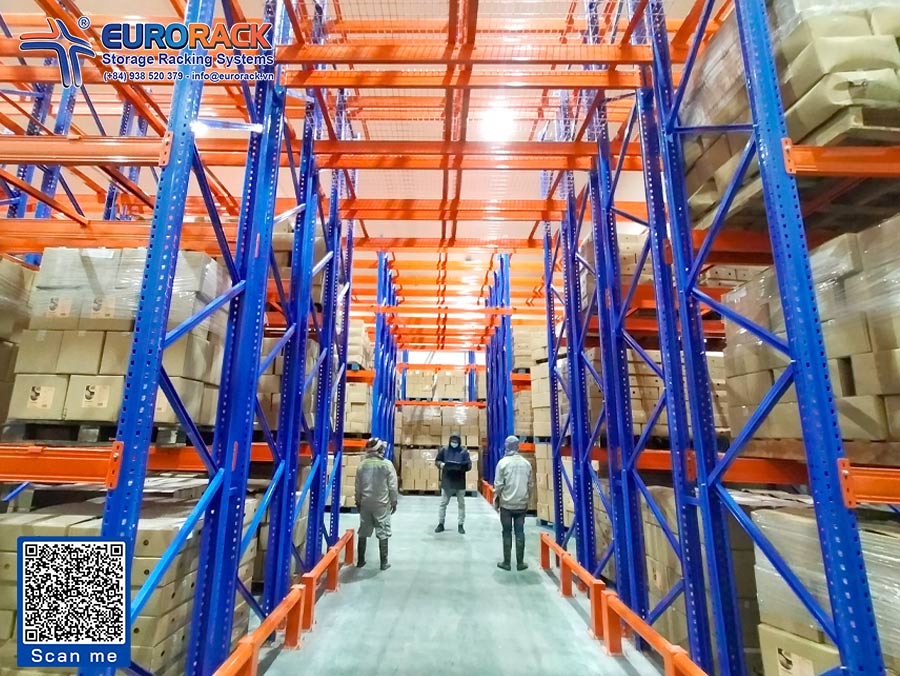

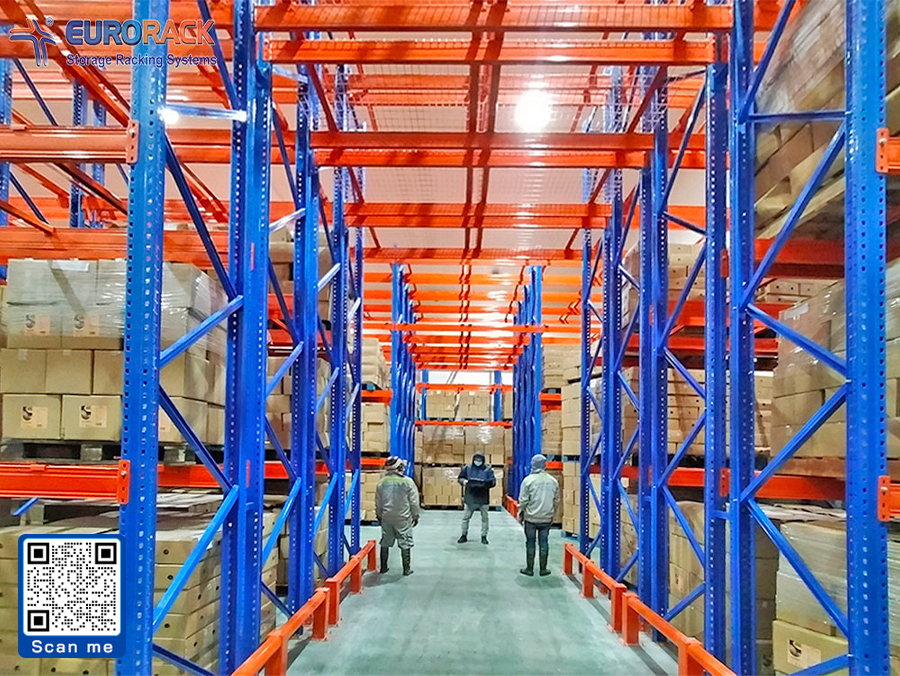

The complete structure of a Double Deep rack system

• 2-3 Times Higher Storage Capacity compared to Selective Racking.
• Optimized Aisle Space with a calculated layout, reducing transport time and significantly improving warehouse efficiency.
• Maximizes Warehouse Space Utilization, enhancing overall storage productivity.
• Fast and Simple Pallet Access with the support of specialized reach trucks.
• Easy to Assemble and Dismantle, allowing for quick installation.
• Expandable and Upgradeable, enabling seamless system expansion as inventory density increases.
• High Durability and Corrosion Resistance with electrostatic powder coating or galvanized finish, ensuring rust and oxidation protection for long-term use.

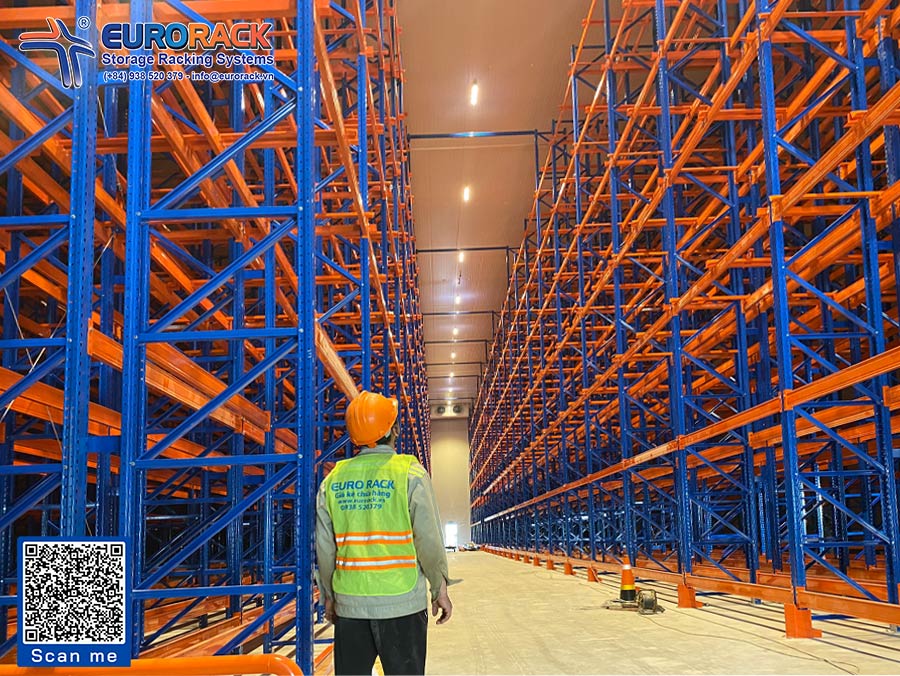

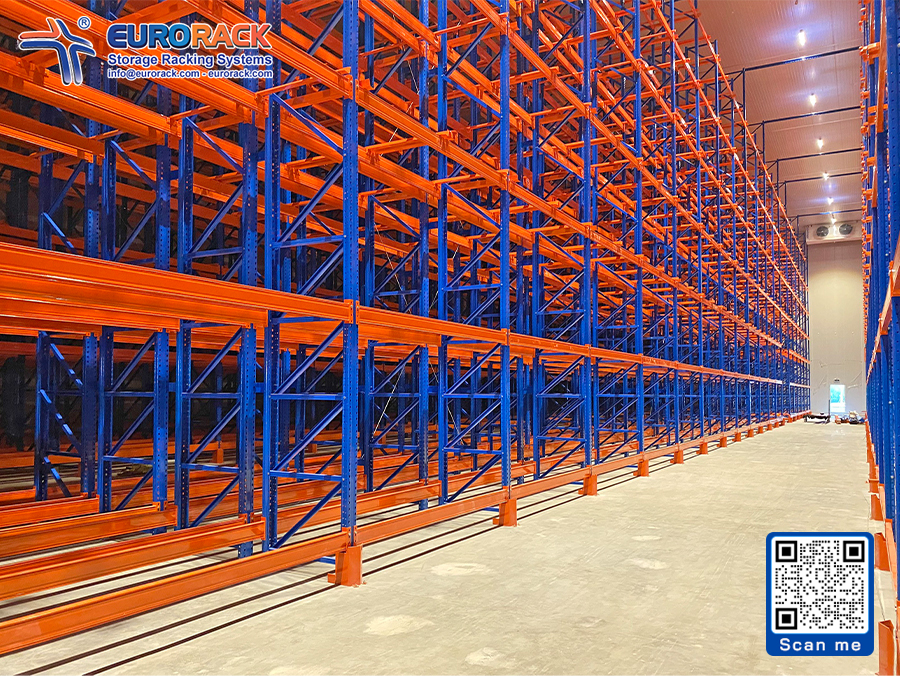

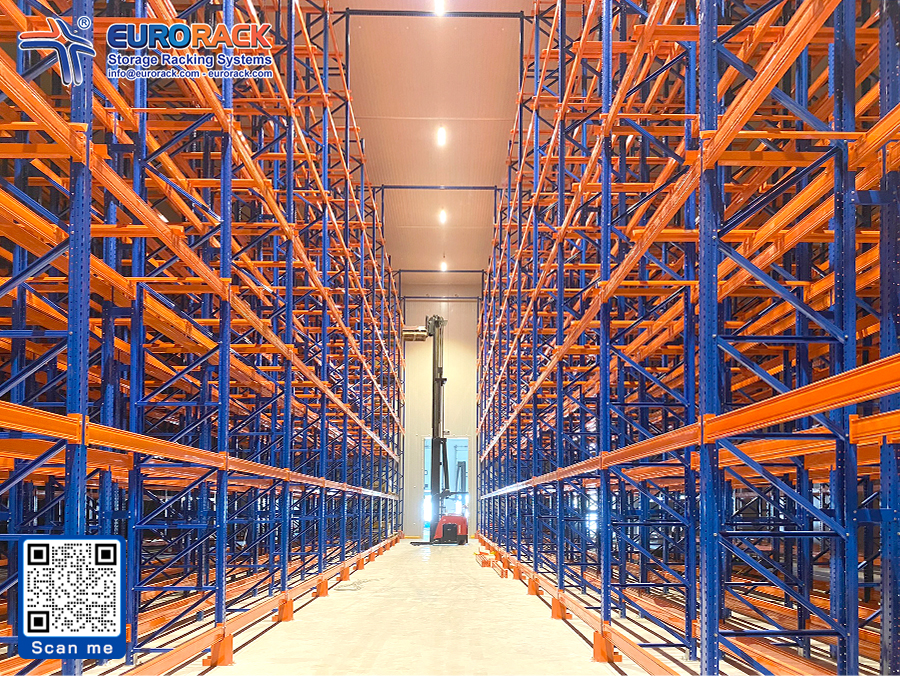

Double Deep Cold Storage racks significantly improve the storage density of goods

Operation of Double Deep Racking

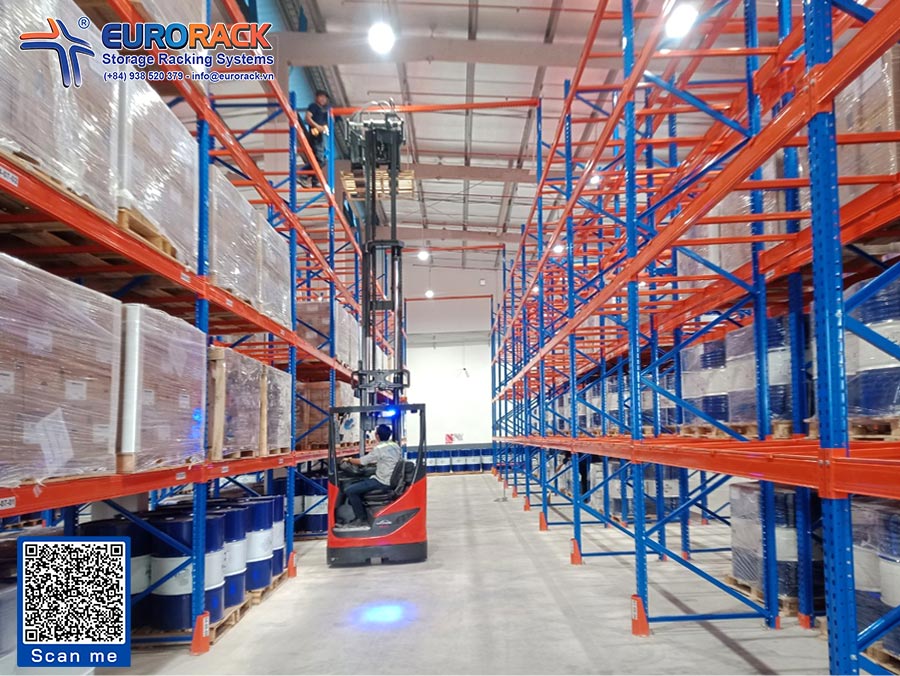

To utilize Double Deep Pallet Racking, warehouses must be equipped with specialized reach trucks that have extendable forks for accessing deeper pallets. Due to the increased racking depth, standard forklifts cannot reach the rear pallets directly.

Inbound Process (Loading Pallets)

The operator identifies the designated storage location for the pallet.
The first pallet is placed deep inside the rack, followed by the second pallet positioned in front of it.

This process continues, with two additional pallets placed on the outer row of the racking level.

Since each Double Deep rack level can store up to 8 pallets, the operator repeats the same steps for the opposite side of the aisle.

Outbound Process (Retrieving Pallets)

Double Deep Racking follows the LIFO (Last In, First Out) inventory method, meaning that the last pallet loaded is the first to be retrieved.

Which Warehouses Should Use the Double Deep Racking System?​

The Double Deep Pallet Racking System is ideal for warehouses that require high-density storage, strong load-bearing capacity, and product uniformity. However, to fully leverage its advantages and efficiency, it is recommended to implement Double Deep Racking in large-scale warehouses with sufficient storage space.

If your warehouse handles multiple SKUs (Stock Keeping Units), don’t worry—proper zoning and strategic inventory organization will ensure an efficient storage system.

Are you struggling with space planning and racking system layout? Eurorack is here to help. As a leading industrial racking manufacturer and designer, we offer tailored storage solutions and expert consultation to optimize your warehouse operations.

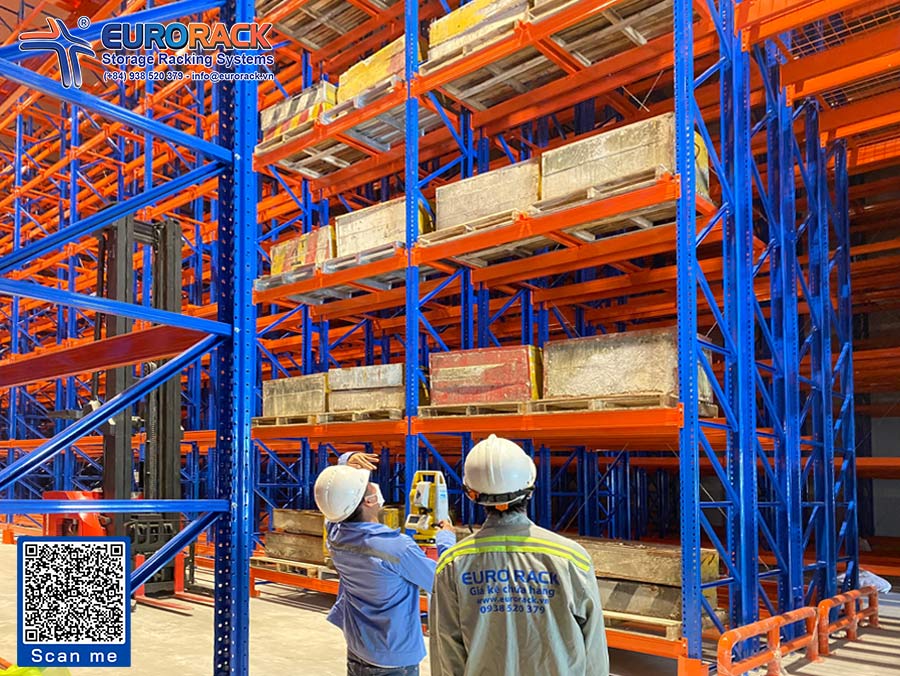

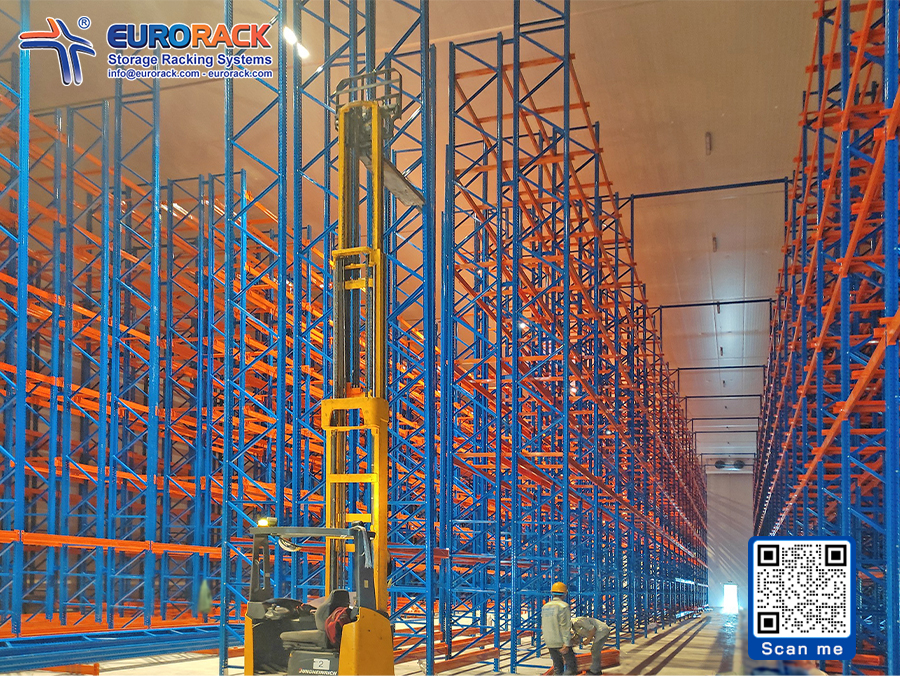

Double Deep pallet racks have excellent load-bearing capacity and durability in cold storage environments

With nearly 15 years of expertise in pallet racking manufacturing, Eurorack is a pioneer in warehouse storage solutions, continuously researching real-world warehouse challenges to develop highly practical and innovative storage solutions.

As both a manufacturer and direct distributor, Eurorack takes pride in being a leading Vietnamese brand, delivering state-of-the-art and intelligent storage solutions to customers both domestically and internationally.

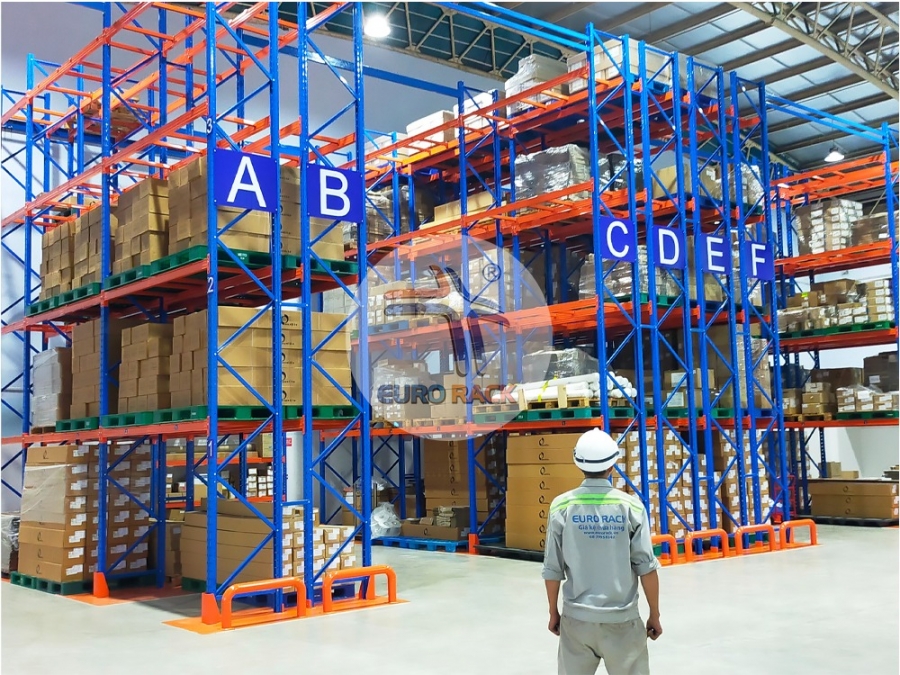

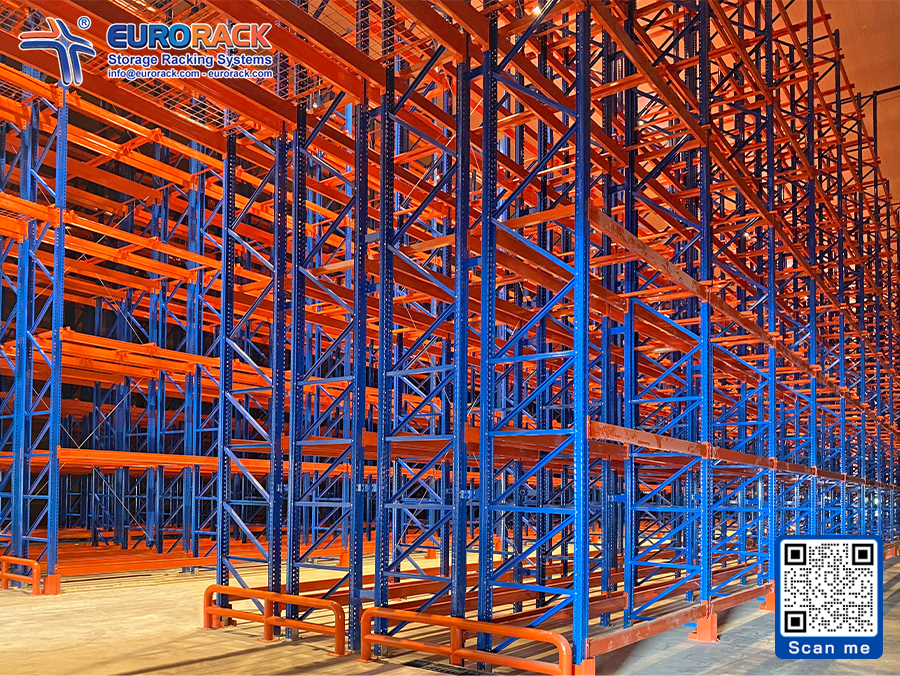

Eurorack specializes in manufacturing and constructing Double Deep shelves for industrial warehouses

These are the key insights about the Double Deep Racking System that Eurorack wants to share. We hope this information helps you gain a better understanding of warehouse storage solutions and effectively address your storage challenges.

Contact Eurorack today! Our team is ready to assist you in finding the most efficient and optimized storage solutions for your warehouse.
